Intuitive Design, Quality Products.
Made in the U.S.A

***4 - Business Day Lead Time on All Orders***

Wolff Engineering GM109SS Lower Steering Column Cartridge Bearing for GM columns with 2" jacket and 1" shaft. This cartridge bearing is designed around a precision, sealed deep-groove radial ball bearing. The cartridge body is constructed of acetal and is fitted with two Buna-N O-rings to insure a snug fit into the column jacket. The center hub is CNC turned from stainless steel and has four stainless steel set screws that engage the steering shaft. This arrangement produces a precise fit with zero radial play.

The GM109SS column bearing arrives as a kit and includes the following items:

• Cartridge Bearing Assembly​

• Hex Key wrench for installation

• Detailed Instructions

This bearing is an excellent upgrade over current import OEM design offerings and will last the life of the vehicle.

Please see the picture of the OEM bearing on this page. If your OEM bearing looks like the one pictured, then the GM109SS will serve as a direct replacement. The GM109SS is compatible with the following vehicles.

• Cadillac Escalade 2002-2006

• Chevrolet S10 1998-2004

• Chevrolet Blazer 1998-2004

• Chevrolet Silverado 1500 1996-2007

• Chevrolet Silverado 2500 1996-2007

• Chevrolet Silverado 3500 2001-2007

• Chevrolet Tahoe 2000-2006

• Chevrolet Suburban 1500 2001-2006

• Chevrolet Suburban 2500 2001-2006

• Chevrolet Avalanche 1500 2002-2006

• Chevrolet Avalanche 2500 2002-2006

• Chevrolet Express 1500 2008-2014

• Chevrolet Express 2500 2008-2017

• Chevrolet Express 3500 2005-2017

• Chevrolet Express 4500 2009-2016

• Chevrolet Express Cargo (Mexico) 2009-2017

• Chevrolet Express Pasajeros (Mexico) 2009-2017

• GMC Jimmy 1998-2001

• GMC Sierra 1500 1996-2006

• GMC Sierra 1500 HD 2001-2006

• GMC Sierra 1500 (HD) Classic 2007

• GMC Sierra 2500 1996-2004

• GMC Sierra 2500 HD 2001-2006

• GMC Sierra 2500 HD Classic 2007

• GMC Sierra 3500 2001-2006

• GMC Sierra 3500 Classic 2007

• GMC Sonoma 1998-2004

• GMC Yukon 2000-2006

• GMC Yukon XL 1500 2000-2006

• GMC Yukon XL 2500 2001-2006

• GMC Savana 1500 2008-2014

• GMC Savana 2500 2008-2017

• GMC Savana 3500 2005-2017

• GMC Savana 4500 2009-2016

• Oldsmobile Bravada 1998-2001

**** 4 day lead time ****

***4 - Business Day Lead Time on All Orders***

Does your vehicle have a steering position sensor? The steering position sensor is nested inside the plastic OEM column bearing and has a wiring harness attached to it. The column bearing is located under the dash near the brake pedal. See pictures.

Please see the attached pictures to measure and determine which type of sensor your vehicle is equipped with. **

Wolff Engineering GM109SS Lower Steering Column Cartridge Bearing for GM columns with 2" jacket and 1" shaft. This cartridge bearing is designed around a precision, sealed deep-groove radial ball bearing. The cartridge body is constructed of acetal and is fitted with two Buna-N O-rings to insure a snug fit into the column jacket. The center hub is CNC turned from stainless steel and has four stainless steel set screws that engage the steering shaft. This arrangement produces a precise fit with zero radial play.

The GM109SS column bearing arrives as a kit and includes the following items:

• Cartridge Bearing Assembly​

• Hex Key wrench for installation

• Detailed Instructions

The GM109SS Cartridge bearing is an excellent upgrade over current import OEM design offerings and will last the life of the vehicle.

The GM109SS is compatible with the following vehicles. Please see the picture of the OEM bearing on this page. If your OEM bearing looks like the one pictured, then the GM109SS will serve as a direct replacement.

**** 4 day lead time ****

***4 - Business Day Lead Time on All Orders***

Wolff Engineering M109SS Lower Steering Column Cartridge Bearing for Saginaw columns with 2" jacket and 1" shaft. This cartridge bearing is designed around a precision, sealed deep-groove radial ball bearing. The cartridge body is constructed of acetal and is precisely toleranced to insure a snug fit into the column jacket. The center hub is CNC turned from stainless steel and has four stainless steel set screws that engage the steering shaft. This arrangement produces a precise fit with zero radial play. The outer retaining collar is constructed of acetal and features three stainless steel dog-point set screws that lock the entire assembly in place. The entire assembly is made from corrosion resistant materials.

​The M109SS column bearing arrives as a kit and includes the following items:

• Cartridge Bearing Assembly​

• Retaining Collar

• Hex Key wrenches for installation

• Emery Cloth, 150 grit

• Detailed Instructions

​The M109SS Cartridge bearing is an excellent upgrade over current OEM design offerings and will reduce the amount of play in the steering system.

​The M109SS is compatible with the following vehicles. There will likely be more vehicles added to this list as I continue my research into compatibility. Please look at the included picture of the OEM design at the top of this page before ordering. If your OEM bearing looks like the one shown in the picture and has a 1" shaft, then the M109SS will serve as a direct replacement for it.

• 1976-1986 Jeep CJ

• 1987-1995 Jeep Wrangler (YJ)

• 1974-1991 Jeep SJ and J Series

• 1969-1982 Corvette

• 1969-Up Chevrolet Nova

• 1974-2002 Chevrolet Camaro

• 1969-Up Chevrolet Chevelle

• 1974-2002 Pontiac Firebird

• 1978-1995 Chevrolet Truck/Van

• 1978-1995 GMC Truck/Van

• 1976-1991 Chevrolet K5 Blazer

• 1976-1994 Chevrolet S-10

• 1976-1994 GMC Jimmy

**** 4 day lead time ****

***4 - Business Day Lead Time on All Orders***

*****Please READ before ordering*****

Does your vehicle have a steering position sensor? The steering position sensor is nested inside the plastic OEM column bearing and has a wiring harness attached to it. The column bearing is located under the dash near the brake pedal. See pictures.

Wolff Engineering GM209SS Lower Steering Column Cartridge Bearing for GM columns with 2.25" jacket and 1" shaft. This cartridge bearing is designed around a precision, sealed deep-groove radial ball bearing. The cartridge body is constructed of acetal and is CNC machined to provide a snug fit into the column jacket. The center hub is CNC turned from stainless steel and has four stainless steel set screws that engage the steering shaft. This arrangement produces a precise fit with zero radial play.

​The GM209SS column bearing arrives as a kit and includes the following items:

• Cartridge Bearing Assembly​

• Hex Keys wrench for installation

• Detailed Instructions

The GM209SS Cartridge bearing is an excellent upgrade over current import OEM design offerings and will last the life of the vehicle.

The GM209SS is compatible with2007.5-2013 GM Trucks/SUVs. Please see the picture of the OEM bearing on this page. If your OEM bearing looks like the one pictured, then the GM209SS will serve as a direct replacement.

**** 4 day lead time ****

***4 - Business Day Lead Time on All Orders***

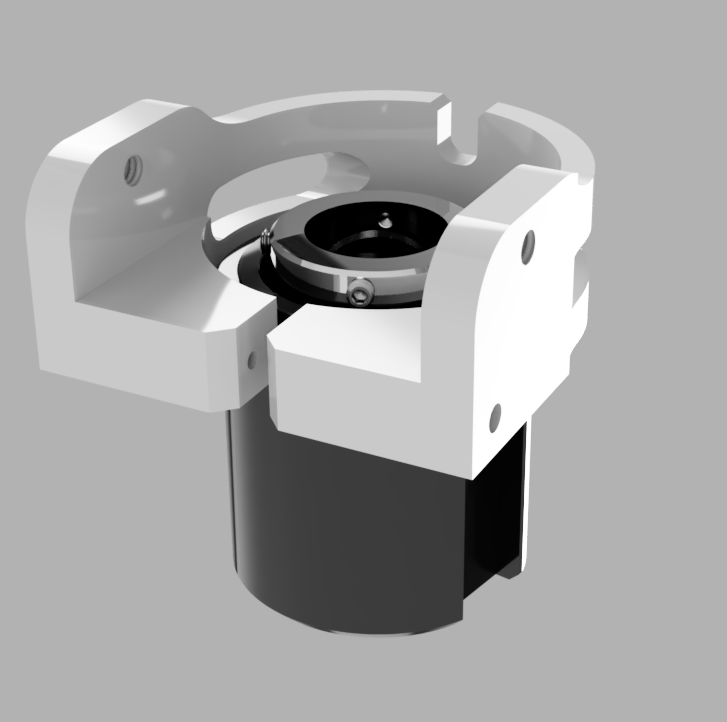

Wolff Engineering GM309SS Lower Steering Column Cartridge Bearing for GM columns with 2.25" jacket and 1" shaft. This cartridge bearing is designed around a precision, sealed deep-groove radial ball bearing. The cartridge body is constructed of acetal and is CNC machined to provide a snug fit into the column jacket. The center hub is CNC turned from stainless steel and has four stainless steel set screws that engage the steering shaft. This arrangement produces a precise fit with zero radial play.

​The GM309SS column bearing arrives as a kit and includes the following items:

• Cartridge Bearing Assembly​

• Hex Keys wrench for installation

• Detailed Instructions

The GM309SS Cartridge bearing is an excellent upgrade over current import OEM design offerings and will last the life of the vehicle.

The GM309SS is compatible with 2014 - 2020 GM Trucks/SUV's. Please see the picture of the OEM bearing on this page. If your OEM bearing looks like the one pictured, then the GM309SS will serve as a direct replacement.

**** 4 day lead time ****

***4 - Business Day Lead Time on All Orders***

Wolff Engineering F109SS Lower Steering Column Cartridge Bearing for Ford columns with 2-11/16" jacket and 1" shaft. This cartridge bearing is designed around a precision, sealed deep-groove radial ball bearing. The cartridge body is constructed of acetal and is fitted with two Buna-N O-rings to insure a snug fit into the column jacket. The center hub is CNC turned from stainless steel and has four stainless steel set screws that engage the steering shaft. This arrangement produces a precise fit with zero radial play.

​The F109SS column bearing arrives as a kit and includes the following items:

• Cartridge Bearing Assembly​

• Hex Key wrench for installation

• Detailed Instructions

​The F109SS Cartridge bearing is an excellent upgrade over current import and domestic design offerings and will last the life of the vehicle.

The F109SS is compatible with the following vehicles. Please see the picture of the OEM bearing on this page. If your OEM bearing looks like the one pictured, then the F109SS will serve as a direct replacement.

• 1980-1991 Ford Trucks.

Here we have a custom branding iron with an equal mix of form and function. The iron is CNC machined from 1" plate steel and the handle is constructed from figured black walnut with a splash of polished stainless steel. A shiny concho terminates the arrangement.  Total length is approximately 33". It's a heavy piece, built to last forever.

​Please send me your design before ordering.

Picatinny Rail American Flag Rifle Badge. CNC Machined from 6061-T6 Aluminum with weapons grade epoxy coating. Flag is constructed of rubber and is weatherproof and very durable. One set screw securely fastens badge to any Picatinny rail.  Dimensions- 2.313" X 1.375", Weight- 0.9 oz
